ESPectre × NM-CYD-C5 Usage Guide

This guide applies to the NM-CYD-C5 running the ESPectre adapted firmware. The firmware provides WiFi CSI human motion detection, a real-time on-screen curve, touch threshold adjustment, one-tap calibration, Home Assistant integration, and a web console.

Feature Overview

Feature	Access
MVS / ML motion detection	Runs automatically on the device
Movement curve and Threshold line	Device screen
Manual threshold adjustment	Screen buttons, Home Assistant, or web console
NBVI auto-calibration	Screen CALIBRATE button or Home Assistant entity
Home Assistant integration	Native ESPHome API
Entity viewing, logs, and OTA	Browser at the device IP
25 Hz real-time curve	Web Bluetooth monitor

First-Time Provisioning

The device has no saved WiFi credentials on first boot and automatically starts a provisioning hotspot:

1. On your phone or computer, connect to the WiFi hotspot named ESPectre Fallback.
2. Wait for the browser to open the provisioning page automatically; if it does not, visit http://192.168.4.1.
3. Select the 2.4 GHz WiFi network in your environment and enter the password.
4. The device reboots and connects to WiFi automatically.

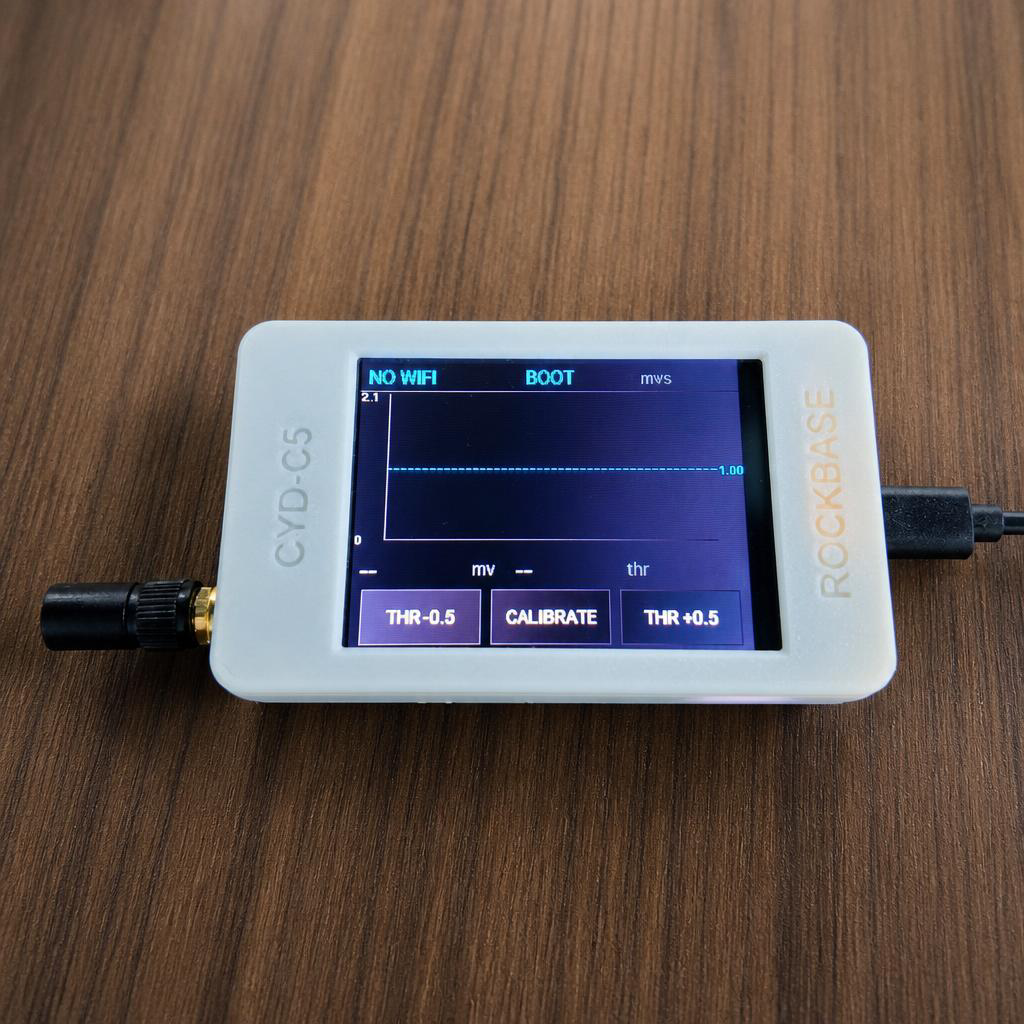

5. Once connected, the device IP address is shown in the top-left corner of the screen; a yellow NO WIFI is displayed when not connected.

ESPectre performs detection over 2.4 GHz WiFi CSI, so a 5 GHz network cannot be used for motion sensing. Provisioning can also be completed via BLE Improv in the Home Assistant mobile app.

Adding to Home Assistant

Make sure the NM-CYD-C5 and Home Assistant are on the same network, then follow these steps:

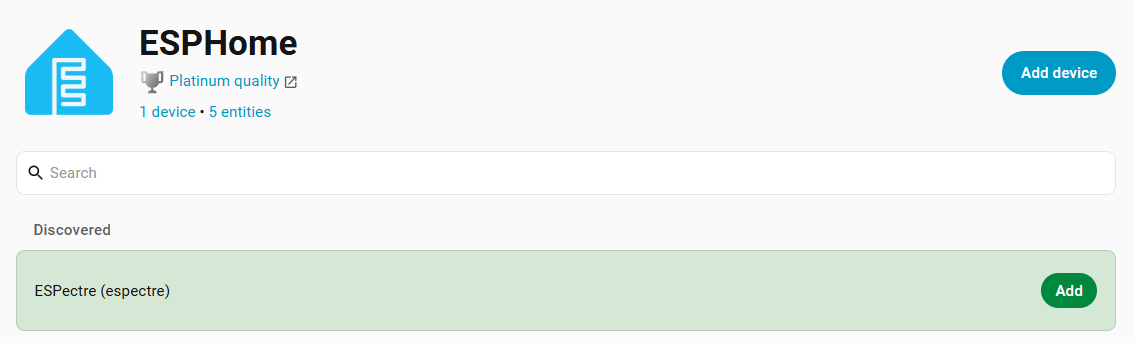

1. In Home Assistant, open Settings → Devices & Services → Add Integration, and install or select ESPHome.
2. Wait for the device to be discovered automatically via mDNS; the default hostname is espectre.
3. If it is not discovered automatically, enter the IP address shown on the screen manually, using port 6053.
4. Confirm the connection to finish adding the device.

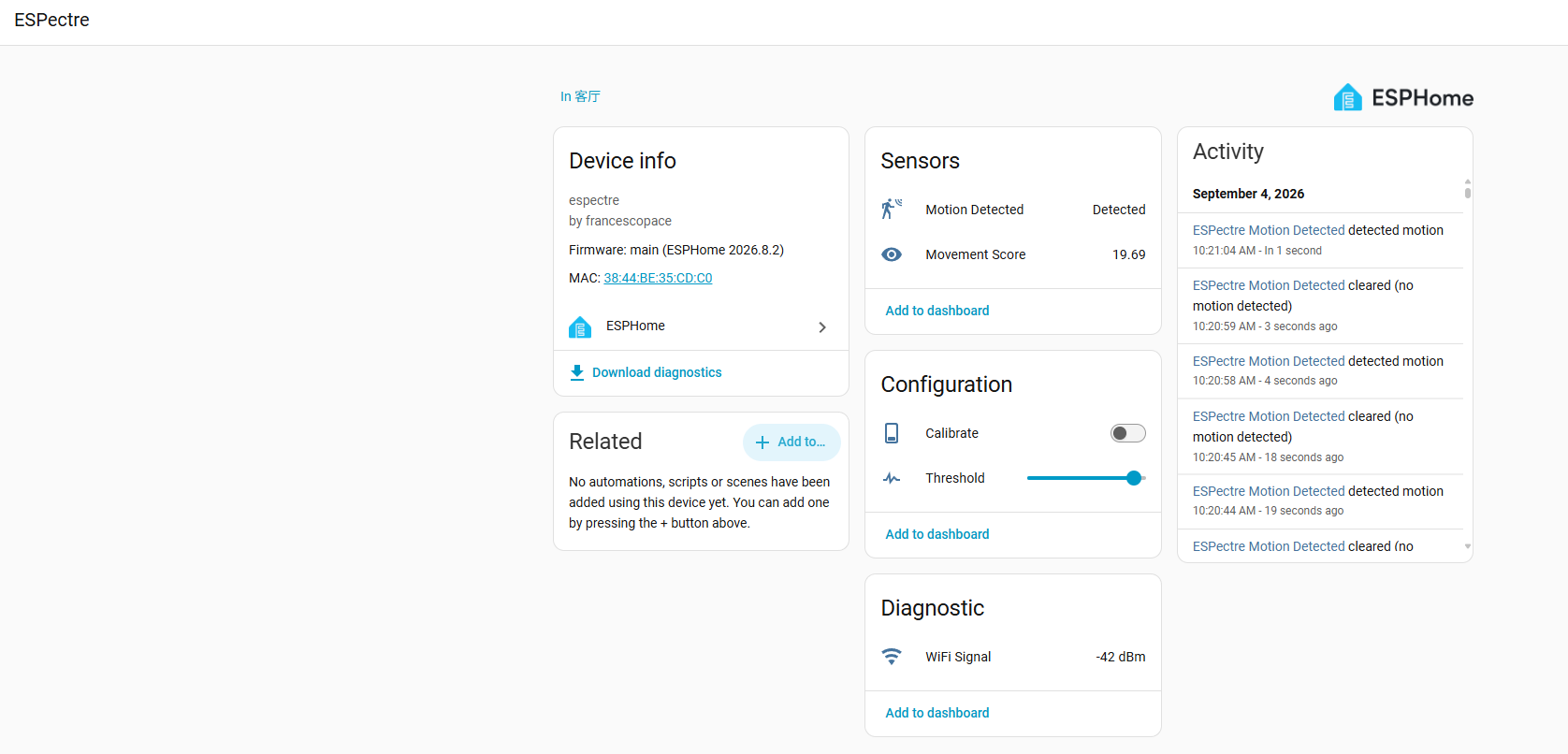

The following entities are available after adding:

Entity	Type	Description
Movement Score	sensor	Current motion score; also the data source of the on-screen curve
Motion Detected	binary_sensor	Motion state after thresholding and hysteresis
Threshold	number	Manual detection threshold, range 0–10
Calibrate	switch	Triggers recalibration; turns off automatically when done
WiFi Signal	sensor	Current WiFi signal strength in dBm

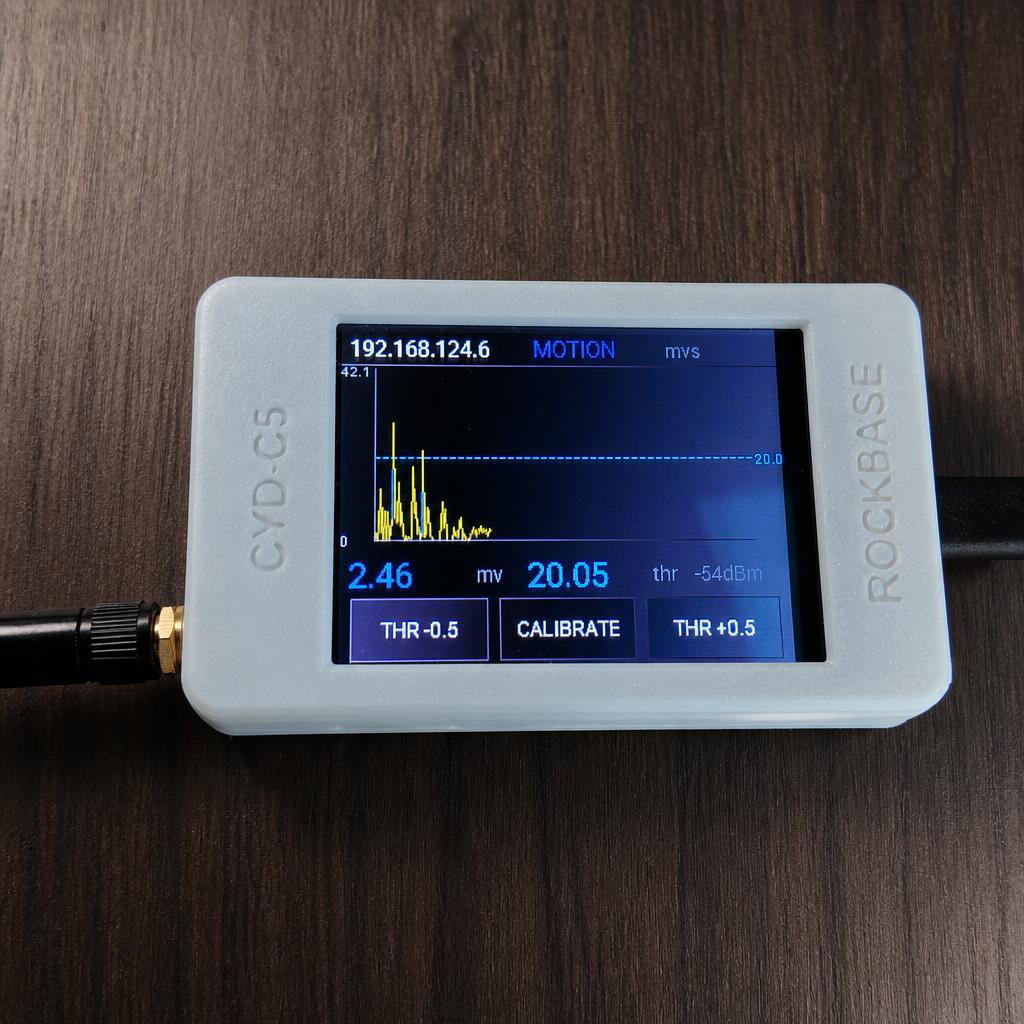

Screen Operation

• Curve area: shows about 4.5 minutes of scrolling history. Curve segments below the threshold are cyan; segments above the yellow threshold line are red.
• THR -0.5 / +0.5: adjusts the manual threshold in 0.5 steps; changes take effect immediately.
• CALIBRATE: starts NBVI recalibration. Calibration takes about 10 seconds — do not move the device and keep the detection area clear of people during this time.
• Status text: MOTION means motion is detected, IDLE means the environment is static, CALIBRATING means calibration is in progress, and BOOT means the device is starting up.

If you get too many false positives, raise the threshold slightly; if you get too many missed detections, lower it slightly. When the device position or room layout changes, recalibrate first, then make small manual adjustments.

Web Console

Visit http://<device-ip>/ on the same LAN to:

• View the states of entities such as Movement Score and Motion Detected;
• Adjust the Threshold or trigger Calibrate;
• View the device logs in real time;
• Upload firmware.ota.bin for an OTA update.

The default configuration has no web access password and should only be used on a trusted LAN. To restrict access, enable web_server.auth in the firmware YAML.

Bluetooth Live Monitor

When you need a higher curve refresh rate than the device screen provides, use micro-espectre/espectre-monitor.html from the ESPectre repository. Open the page in Chrome or Edge with Web Bluetooth support, connect to the device, and view the 25 Hz Movement and Threshold curves, as well as adjust the threshold with a slider.

Daily Usage Tips

• Avoid large metal obstructions between the device and the router;
• Do not place the device too close to the router — keep at least 50 cm of distance;
• Recalibrate when the device is moved, furniture is rearranged, or false positives/negatives become noticeable;
• Keep the room still during calibration and avoid people walking through the detection area;
• After a brief WiFi disconnect, the device reconnects automatically and CSI detection resumes.

Troubleshooting

Symptom	Solution
Screen shows NO WIFI	Connect to the ESPectre Fallback hotspot and provision again, making sure to select a 2.4 GHz network
Device web page cannot be opened	Confirm your computer and the device are on the same subnet, and that the current firmware has web_server enabled
Home Assistant cannot find the device	Check the subnet and VLAN; or add it manually with the IP address shown on the screen and port 6053
Touch buttons unresponsive or offset	Adjust the four boundary values of touchscreen.calibration in the YAML
Unstable calibration results	Recalibrate with a still environment, and check the distance and signal quality between the device and the router
Too many false positives	Recalibrate first, then raise the threshold gradually
Too many missed detections	Recalibrate first, then lower the threshold gradually
How to update the firmware	Upload the OTA firmware from the web console, or upload over WiFi via ESPHome

For the hardware mapping and refresh mechanism, see ESPectre Implementation on NM-CYD-C5.
