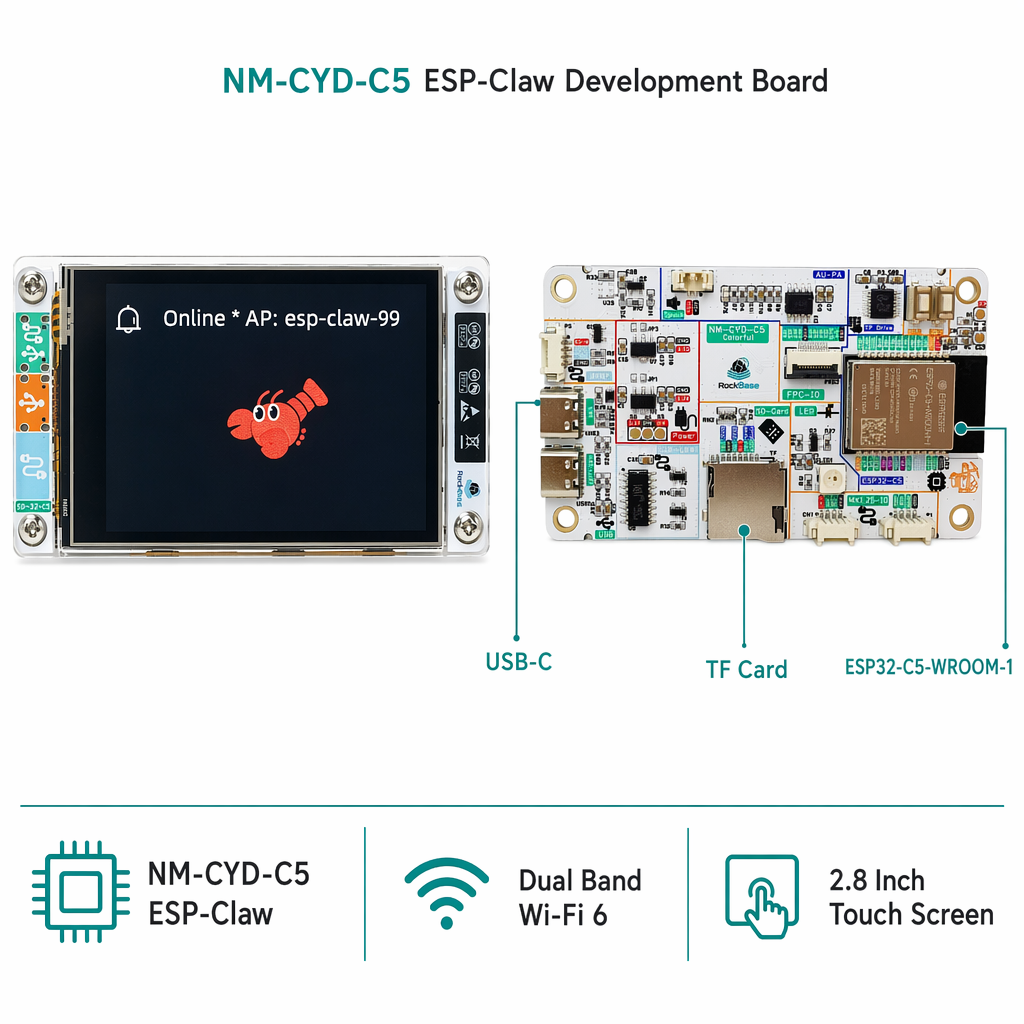

NM-CYD-C5 ESP-Claw: Home AI Agent in Your Palm
Turn your NM-CYD-C5 into an Edge AI Agent that fits in your palm.
Overview
In an era of increasing IoT and edge computing prevalence, the demand for intelligent, efficient, and economical AI Agents continues to grow. The NM-CYD-C5 ESP-Claw is designed to meet this very need. It combines the powerful ESP32-C5 dual-band Wi-Fi 6 microcontroller with the innovative esp-claw AI Agent framework, offering an independent, low-cost, and feature-rich edge AI solution.
This "Cheap Yellow Display" (CYD) development board not only boasts an intuitive user interface but also empowers devices with the ability to interact and be controlled through natural language, allowing ordinary users to easily define device behavior and achieve true "chat coding."
Core Selling Points
Edge AI Agent
Powered by ESP32-C5 (16 MB Flash + 8 MB PSRAM), ESP-Claw handles perception and execution entirely on-device, while offloading reasoning and decision-making to LLMs. No separate host machine needed to run an OpenClaw Gateway — lower cost, lower power, stronger security.
Chat Coding
Talk, and it codes. Chat directly via WeChat, QQ, Feishu, or Telegram — the LLM generates and runs Lua scripts in real time. Ordinary users can define device behavior without writing a single line of code.
2.8" Touchscreen — Intelligence You Can See
A 320×240 resistive touchscreen displays real-time status, a message inbox, and hardware metrics at a glance. Touch, swipe, and stay in full control.
Rich Hardware Integration
Built-in display, touch, RGB LED, SD card slot, and GPS interface — fully featured and ready to go, right out of the box.
Dual-Band Wi-Fi 6
Delivers high-speed, stable wireless connectivity for efficient data transfer, supporting both 2.4 GHz and 5 GHz bands.
Multi-Model, On-Demand Conversations
Supports GPT, Claude Opus 4.6, DeepSeek, Kimi, MiniMax (cloud), and local Ollama — flexible API configuration for any scenario.
Custom Skills
Create and evolve your own skills — continuously adapting, endlessly getting smarter.
What's ESP-Claw
ESP-Claw is Espressif's Chat Coding AI agent framework for IoT devices. It defines device behavior through conversation and completes the full loop of sensing, decision-making, and execution locally on Espressif chips. Inspired by the OpenClaw concept and reimplemented in C, ESP-Claw is lightweight, intelligent, and continuously evolving. With just an ESP32-series chip that costs only a few dollars, you can experience what makes ESP-Claw so nimble.
Key Features

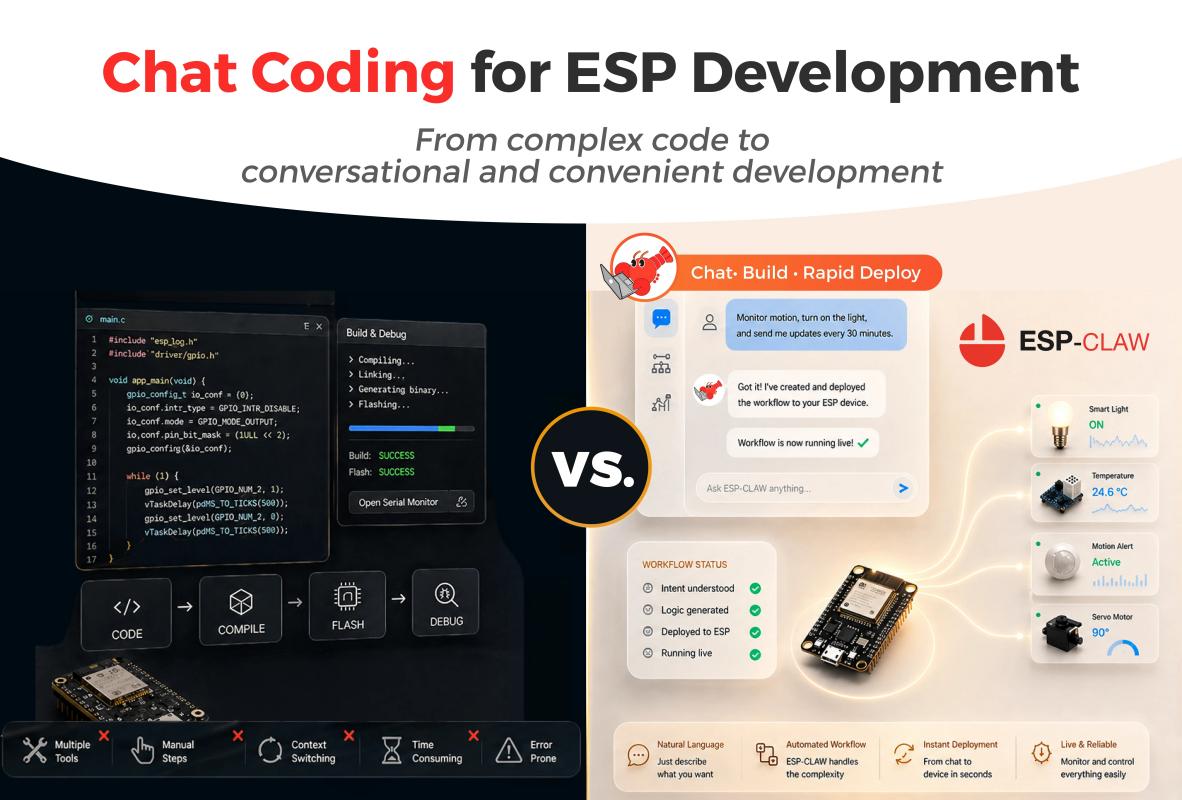

Traditional IoT usually stops at connectivity: devices can connect to the network, but they cannot think; they can execute commands, but they cannot make decisions. ESP-Claw brings the Agent Runtime down onto Espressif chips, turning them from passive executors into active decision-making centers.
| Feature | Description |
|---|---|
| Chat as Creation | IM chat + dynamic Lua loading. Ordinary users can define device behavior without programming. |
| Event Driven | Any event can trigger the Agent Loop. Response can be as fast as milliseconds. |
| Structured Memory | Organize memories in a structured way. Privacy stays off the cloud. |
| MCP Communication | Supports standard MCP devices. Works as both Server and Client. |
| Ready Out of the Box | Quick setup with Board Manager. Supports one-click flashing. |
| Component Extensibility | Every module can be trimmed as needed. You can also add your own component integrations. |
Hardware Requirements
| Item | Specification |
|---|---|
| Board | NM-CYD-C5 (ESP32-C5) |
| Flash | 16 MB |
| PSRAM | 8 MB |
| Display | 2.8" ST7789, 320×240 |
| Touch | Resistive touchscreen |
| Wireless | Dual-band Wi-Fi 6 + BLE 5 |
| Extras | RGB LED, SD card slot, GPS interface |

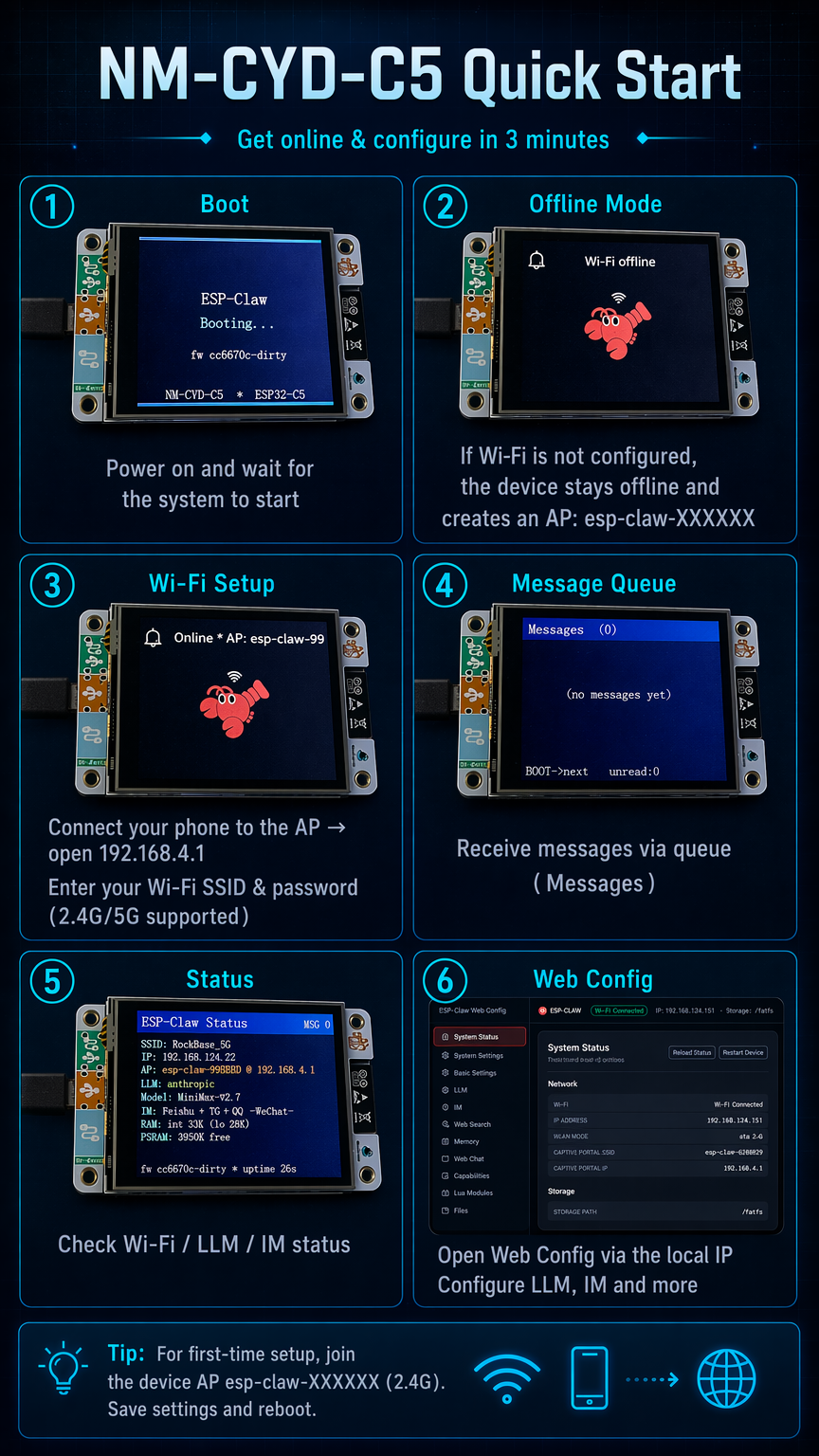

Quick Start
1. Get the Hardware
Purchase the NM-CYD-C5 from:
2. Flash ESP-Claw Firmware
NMIOT Web Flash Tool supports one-click flashing of ESP-Claw firmware onto NM-CYD-C5. Just select the project, device, and version, and you're good to go.
3. Configure AI Model
Connect to the board's Wi-Fi AP and open the web config panel. Enter your preferred LLM API key (OpenAI, DeepSeek, Kimi, etc.).
4. Start Chatting
Open your favorite IM app (WeChat, Telegram, etc.) and add the board's bot. Start chatting to control your device!
Example: Chat Coding
User: "Turn the LED red when the temperature exceeds 30°C."
ESP-Claw: (generates and executes Lua script)
-- Auto-generated by ESP-Claw
local temp = sensor.read_temperature()
if temp > 30 then
led.set_color(255, 0, 0)
else
led.set_color(0, 255, 0)
end
